Make Data-Informed Decisions in Your Campaign: Exploring D&D 5th Edition Monster Features Using Julia

Introduction

Why Data-Informed Dungeon Mastering?

A DM preparing encounters faces a design problem: the Monster Manual contains hundreds of creatures, and browsing by hand is tedious and error-prone. Treating monster selection as a data management problem changes this: you can filter, sort, group, and visualize attributes programmatically, asking precise questions like "Which Large undead have AC below 14?". This is the same principle behind any evidence-based workflow: systematic exploration of your option space leads to better decisions.

About This Notebook

This notebook walks through an exploratory data analysis of D&D 5th Edition monster statistics using Julia. The workflow (load, inspect, explore, visualize, filter, analyze) is universal and transfers directly to any tabular dataset in any domain.

Setup and Data Loading

# --- Package imports ---
using CSV              # Read/write CSV files
using DataFrames       # Tabular data structures
using DataFramesMeta   # Convenient macros: @subset, @groupby
using Statistics        # mean, median, std, etc.
using Random           # Reproducible random sampling
using StatsPlots       # Plotting: bar, boxplot, violin, pie

# Global plot defaults for readability
default(
    size = (820, 580),
    guidefontsize = 12,
    tickfontsize = 10,
    titlefontsize = 14,
    legendfontsize = 11,
    fontfamily = "sans-serif",
    margin = 5Plots.mm,
    dpi = 150
)

A DataFrame is a spreadsheet in code: rows are records (monsters), columns are attributes (HP, size, type). This structure lets you filter, group, summarize, and visualize patterns, the same way for any tabular data.

To load a CSV file into a DataFrame in Julia:

# Load the dataset; semicolon suppresses output
df_monsters = CSV.read("cleaned_monsters_basic.csv", DataFrame);

# Preview the first 5 rows
first(df_monsters, 5)

This data was downloaded from Kaggle.

Inspecting column names

Before any analysis, check what features (columns) are available:

for name in names(df_monsters)
    print(name, "\t")
end

Column1  name  size  monster_type  alignment  ac  hp  strength  str_mod  dex  dex_mod  con  con_mod  intel  int_mod  wis  wis_mod  cha  cha_mod  senses  languages  cr  str_save  dex_save  con_save  int_save  wis_save  cha_save  speed  swim  fly  climb  burrow  number_legendary_actions  history  perception  stealth  persuasion  insight  deception  arcana  religion  acrobatics  athletics  intimidation

The dataset contains 45 columns. For this notebook, we will focus on a manageable subset: name, monster_type, alignment, ac, hp, strength, speed, and cr.

Exploring Categorical Features

Before computing statistics, check what values exist in your data. This prevents surprises like typos, unexpected categories, or missing entries.

How many different sizes exist?

unique(df_monsters[!, :size])

6-element Vector{String15}:
 "Large"
 "Medium"
 "Huge"
 "Gargantuan"
 "Small"
 "Tiny"

Visualizing Distributions

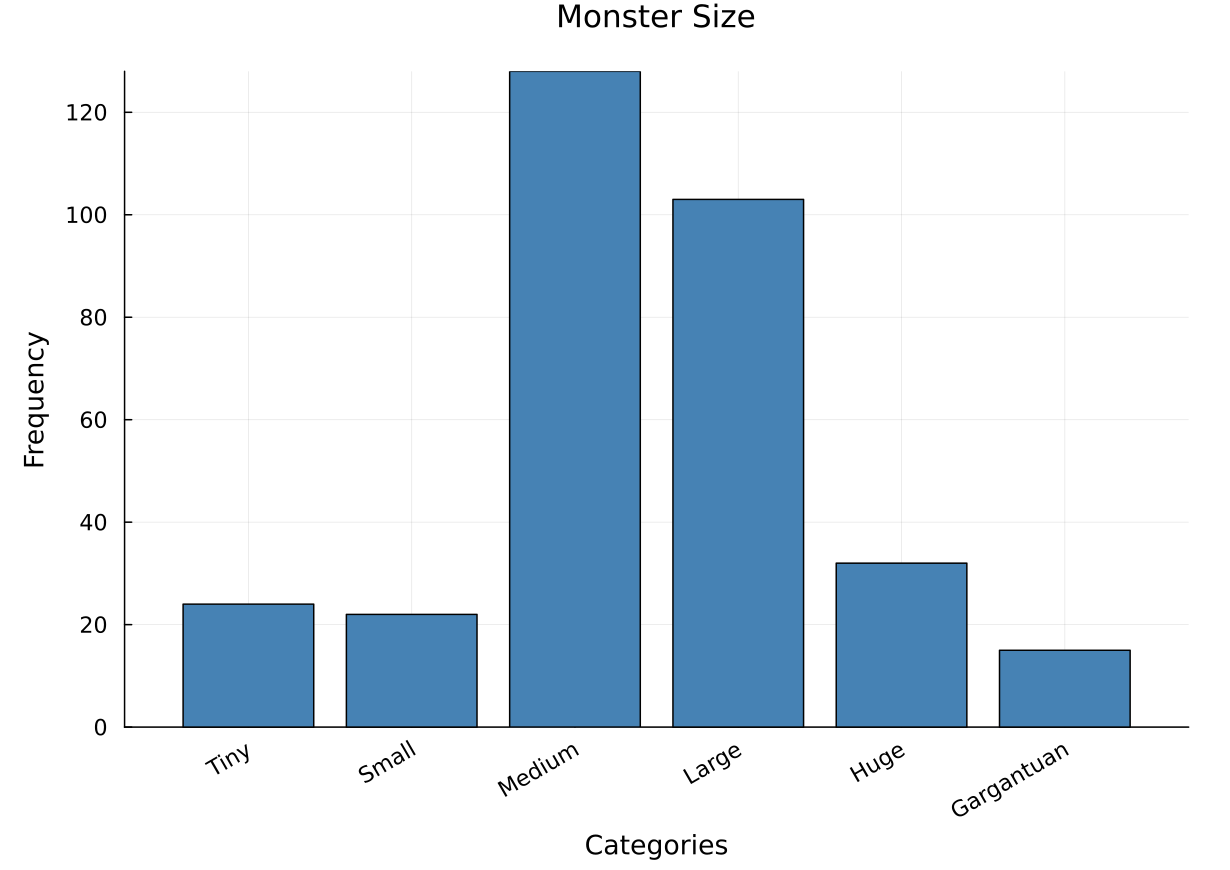

Bar plot: Monster count by size

When you have discrete categories (Small, Medium, Large), bar charts make comparison intuitive: taller bars mean more items. Sorting bars by a logical order (Tiny → Gargantuan) or by frequency helps you immediately spot which categories dominate and which are rare.

function plot_frequency_distribution(string_array;
        title="Frequency Distribution",
        size=(800,600),
        rotation=45,
        var_order=nothing)

    # Count occurrences of each category
    freq_dict = Dict{String, Int}()
    for s in string_array
        freq_dict[s] = get(freq_dict, s, 0) + 1
    end

    # Sort by frequency (descending) by default
    sorted_pairs = sort(collect(freq_dict), by=x->x[2], rev=true)

    # Optional: reorder by a custom index (e.g. Tiny→Gargantuan)
    if var_order !== nothing
        if length(var_order) != length(sorted_pairs)
            error("var_order length must match unique elements")
        end
        ordered_pairs = [sorted_pairs[i] for i in var_order]
    else
        ordered_pairs = sorted_pairs
    end

    labels = [pair[1] for pair in ordered_pairs]
    counts = [pair[2] for pair in ordered_pairs]

    bar(labels, counts,
        title=title,
        xlabel="Categories",
        ylabel="Frequency",
        size=size,
        xrotation=rotation,
        legend=false,
        color=:steelblue)
end

plot_frequency_distribution(df_monsters[!, :size],
    title="Monster Size",
    var_order=[4, 5, 1, 2, 3, 6])

Pie chart: Size as proportion of the whole

Pie charts work best when you want to emphasize that categories are parts of a whole (100%). "Half of all monsters are Medium-sized" reads more intuitively as a pie slice than a bar. Avoid pie charts when you have more than 5–6 categories.

function pie_chart_feat(string_array;
        title="PieChart Distribution",
        size=(600,400),
        legendfontsize=10)

    # Count occurrences
    freq_dict = Dict{String, Int}()
    for s in string_array
        freq_dict[s] = get(freq_dict, s, 0) + 1
    end

    labels = collect(keys(freq_dict))
    counts = collect(values(freq_dict))

    # Compute percentages and build "Label (X%)" strings
    total = sum(counts)
    percentages = round.((counts ./ total) .* 100, digits=1)
    labels_pct = [string(l, " (", p, "%)")
                  for (l, p) in zip(labels, percentages)]

    pie(labels_pct, counts,
        title=title, legend=:outertopright,
        size=size, legendfontsize=legendfontsize)
end

pie_chart_feat(df_monsters[!, :size],
    title="Monster Size Distribution",
    size=(1000,800),
    legendfontsize=16)

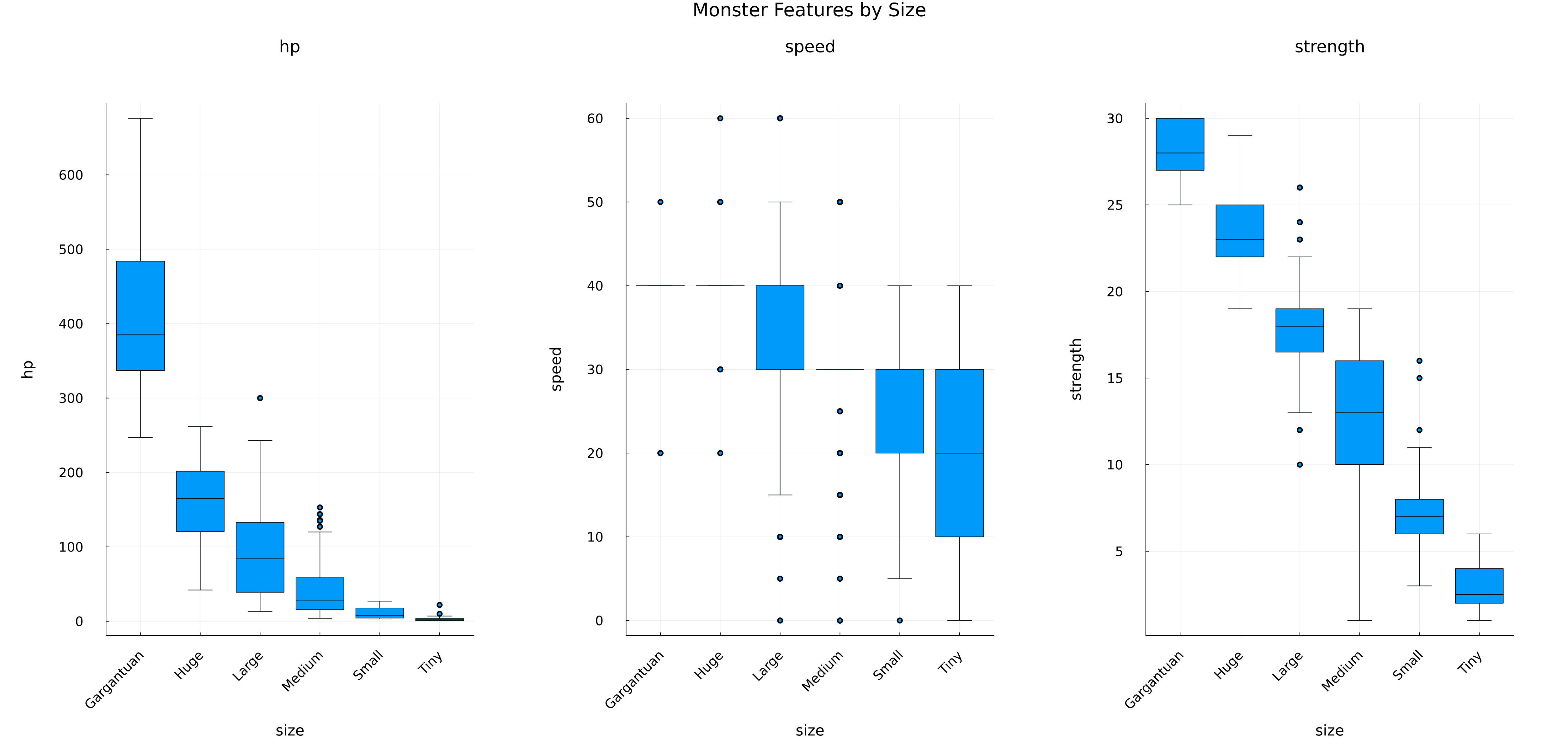

Boxplots: How do numerical features vary across sizes?

Boxplots show the median, interquartile range (middle 50%), and outliers for each category. Violin plots add a density curve revealing the full distributional shape. Use boxplots for compact comparisons; violins when shape matters (bimodality, heavy skew).

The DataFramesMeta package provides the @groupby macro, which partitions a DataFrame into sub-tables by a categorical variable, similar to SQL's GROUP BY or pandas' groupby().

function plot_distributions_by_category(df, categorical_col, numeric_cols;
        title="Distributions by Category",
        size=(1600, 600),
        plot_type=:boxplot)

    # Split DataFrame into sub-tables by category
    grouped_df = @groupby(df, categorical_col)
    categories = [key[categorical_col] for key in keys(grouped_df)]

    # Determine subplot grid layout (max 3 columns)
    n_plots = length(numeric_cols)
    n_cols = min(3, n_plots)
    n_rows = ceil(Int, n_plots / n_cols)

    plots_array = []

    for (i, col) in enumerate(numeric_cols)
        all_values = Float64[]
        all_labels = String[]

        for category in categories
            category_data = grouped_df[(;
                Dict(categorical_col => category)...)]
            values = category_data[!, col]
            clean_values = filter(!ismissing, values)
            clean_values = Float64.(clean_values)

            if !isempty(clean_values)
                append!(all_values, clean_values)
                append!(all_labels,
                    fill(string(category), length(clean_values)))
            end
        end

        if plot_type == :violin
            p = violin(all_labels, all_values,
                title=string(col), legend=false)
        elseif plot_type == :boxplot
            p = boxplot(all_labels, all_values,
                title=string(col), legend=false)
        end
        push!(plots_array, p)
    end

    plot(plots_array...,
        layout=(n_rows, n_cols), size=size,
        plot_title=title)
end

plot_distributions_by_category(df_monsters,
    :size, [:hp, :speed, :strength])

Filtering and Subsetting

Real-world analysis rarely uses the entire dataset at once. You filter to answer specific questions; in our case, "Which Large monsters have surprisingly low HP?"

Are there Large monsters with low HP?

Using the @subset macro from DataFramesMeta, we can combine conditions. The dot (.) prefix on operators means "apply element-wise"; Julia checks each row individually.

using DataFramesMeta

# Filter: Large monsters with fewer than 20 HP
# The dot (.) broadcasts the comparison across all rows
low_hp_large = @subset(df_monsters,
    :hp .< 20,
    :size .== "Large")

All 13 results are Beasts (plus one Monstrosity, the Hippogriff), with CRs at or below 1. These are large-bodied but fragile creatures, useful for wildlife encounters or travel sequences where you want imposing visuals without deadly stakes.

Filtering by multiple categories

For more complex selections, say you are a DM looking for Small-to-Large Aberrations and Dragons:

# Define allowed values for each filter
monster_sizes = ["Small", "Medium", "Large"]
monster_types = ["Aberration", "Dragon"]

# .∈ broadcasts "is element of" row-wise
# Ref() prevents Julia from iterating over the array itself
monster_options = @subset(df_monsters,
    :size .∈ Ref(monster_sizes),
    :monster_type .∈ Ref(monster_types));

size(monster_options)[1]

26

This gives 26 candidates. Here are the first six:

Random selection

When you have a filtered pool and want to pick one at random (for a random encounter table or to break decision paralysis):

# Simulate a dice roll to pick a random monster from the pool
monster_dice_roll = rand(1:size(monster_options, 1))
monster_options[monster_dice_roll, :]

Random selection is foundational in data science more broadly: train/test splits, bootstrap sampling, and randomized assignment all use this same operation.

Campaign-specific filtering with regex

Most encounter-building depends on the campaign. If you're running Curse of Strahd, you want Undead creatures specifically. The @subset macro works with regular expressions via occursin():

# Case-insensitive regex match on monster_type
rege = r"Undead"i
my_monster_selection = @subset(df_monsters,
    occursin.(rege, :monster_type))

This returns 18 Undead monsters, from the Skeleton (CR 1/4) to the Lich (CR 21):

Having this pool organized and queryable lets you design a progression of encounters across a campaign like Curse of Strahd.

Balancing a Fight

When putting together a fight, we want to strike a balance between challenge and ensuring that our players have fun. To do this, we might want to take a look at the chance our players will hit a given monster on each roll. Keeping on the theme of the undead, let's calculate the distribution of success chances against these monsters to see if our players are ready to take on the living dead!

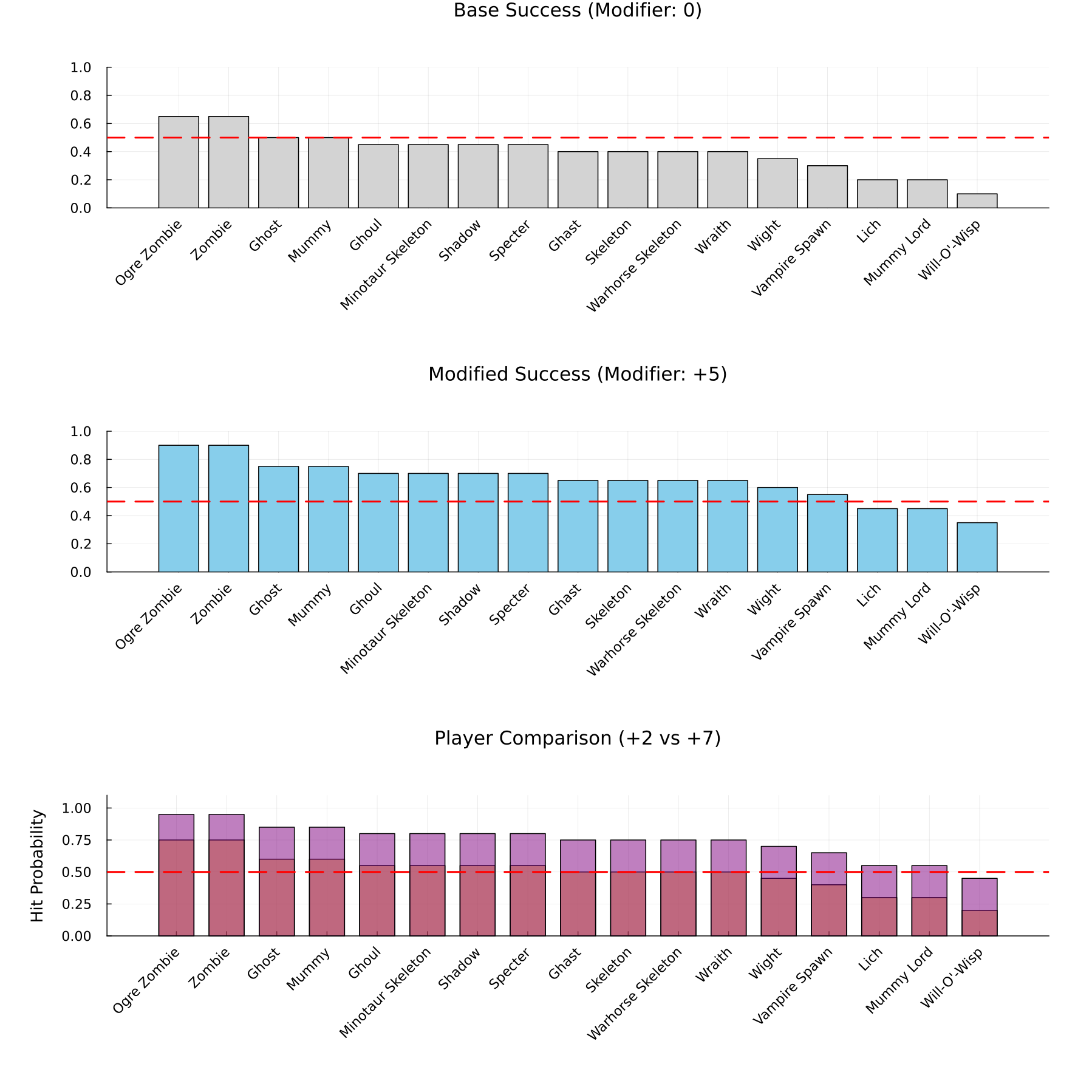

Calculating hit probabilities across Undead monsters

We calculate by doing the following:

• For each monster, calculate the probability of hitting. For this example, we are looking at a situation where there are no modifiers, where the player has +5, and where there are two players with +2 and +7.
• Given the AC of the monster, what is the distribution of a player's chances in hitting this monster (e.g., rolling above the given AC)?
• Plot this on a bar chart to see who our players would have a chance to defeat!

# Hit probability for a d20 roll against a given AC
function calculate_d20_probability(threshold::Int, modifier::Int)
    effective_threshold = threshold - modifier

    # D&D rules: nat 20 always hits, nat 1 always misses
    if effective_threshold > 20
        return 0.05  # Natural 20 always hits
    elseif effective_threshold <= 1
        return 0.95  # Natural 1 always misses
    else
        # Count how many d20 faces meet the threshold
        favorable_outcomes = 21 - effective_threshold
        return favorable_outcomes / 20.0
    end
end

# Load data and filter to Undead only
df = CSV.read("cleaned_monsters_basic.csv", DataFrame)
filtered_df = filter(row -> row.monster_type == "Undead", df)
sort!(filtered_df, :ac)  # Order by Armor Class for readable plots

# Four scenarios: no modifier, +5, and two players (+2 vs +7)
mod_0 = 0
mod_5 = 5
p1_mod = 2
p2_mod = 7

# Calculate probabilities
names = filtered_df.name
chance_0 = calculate_d20_probability.(
    Int.(filtered_df.ac), Ref(mod_0))
chance_5 = calculate_d20_probability.(
    Int.(filtered_df.ac), Ref(mod_5))
chance_p1 = calculate_d20_probability.(
    Int.(filtered_df.ac), Ref(p1_mod))
chance_p2 = calculate_d20_probability.(
    Int.(filtered_df.ac), Ref(p2_mod))

# --- Three-panel dashboard ---

# Plot 1: No Modifier
p1 = bar(names, chance_0,
    title = "Base Success (Modifier: 0)",
    color = :lightgrey,
    xticks = :all, xrotation = 45,
    ylims = (0, 1), legend = false)
hline!([0.5], color=:red, linewidth=2, linestyle=:dash)

# Plot 2: Single Modifier (+5)
p2 = bar(names, chance_5,
    title = "Modified Success (Modifier: +5)",
    color = :skyblue,
    xticks = :all, xrotation = 45,
    ylims = (0, 1), legend = false)
hline!([0.5], color=:red, linewidth=2, linestyle=:dash)

# Plot 3: Player Comparison
p3 = bar(names, [chance_p1 chance_p2],
    title = "Player Comparison (+2 vs +7)",
    label = ["Player 1 (+2)" "Player 2 (+7)"],
    color = [:orange :purple],
    fillalpha = 0.5,
    ylabel = "Hit Probability",
    xticks = :all, xrotation = 45,
    ylims = (0, 1.1),
    legend = false)
hline!([0.5], color=:red, linewidth=2, linestyle=:dash)

# Combine into a single 3-row figure
plot(p1, p2, p3,
    layout = (3, 1),
    size = (1200, 1200),
    margin = 10Plots.mm)

The bottom panel is where it gets interesting for DMs. Player 1 (+2) struggles against AC 16+ monsters (Vampire, Lich), dropping to around 35% hit chance, while Player 2 (+7) stays above 50% against everything. This asymmetry matters: if you put a Vampire against this party, Player 1 will feel ineffective in direct combat, which might be frustrating, or might be a deliberate design choice that pushes them toward creative problem-solving. The data lets you make that choice intentionally rather than discovering it mid-session.

Summary

This notebook demonstrated a universal data analysis workflow applied to D&D monster statistics:

1. Load and inspect your data to understand its structure and available features.
2. Explore categorical variables (size, type) to see what categories exist and how they're distributed.
3. Visualize distributions to compare numerical features (HP, speed, strength) across groups.
4. Filter and subset to answer specific questions relevant to your use case.
5. Apply quantitative reasoning, here basic probability, to inform decisions.

The tools and thinking transfer directly to any domain with tabular data: ecological surveys, clinical records, economic indicators, or sensor measurements. The key insight is the same in all of them: systematically exploring your data gives you access to options and patterns that intuition alone would miss. For a Dungeon Master, that means better-balanced encounters, more variety, and more confidence in design choices. For a researcher, it means better experimental design and more robust conclusions.

Appendix: Julia ↔ Python Quick Reference

If you're coming from Python with pandas and matplotlib, Julia will feel familiar. The syntax is clean and readable, but Julia compiles your code, which typically results in faster execution.

The ! in df[!, :column] means "give me the actual column, not a copy." Think of it as Julia being explicit about data access.
